Podrobná analýza produktu
Recenze FiiO K11: Špičkový symetrický stolní DAC a sluchátkový zesilovač 1400mW s čipem CS43198
Založeno na datech•4.9 / 5.0 (2840 hodnocení analyzováno)•od redakce Reviewang
Ověřená Choice nabídka

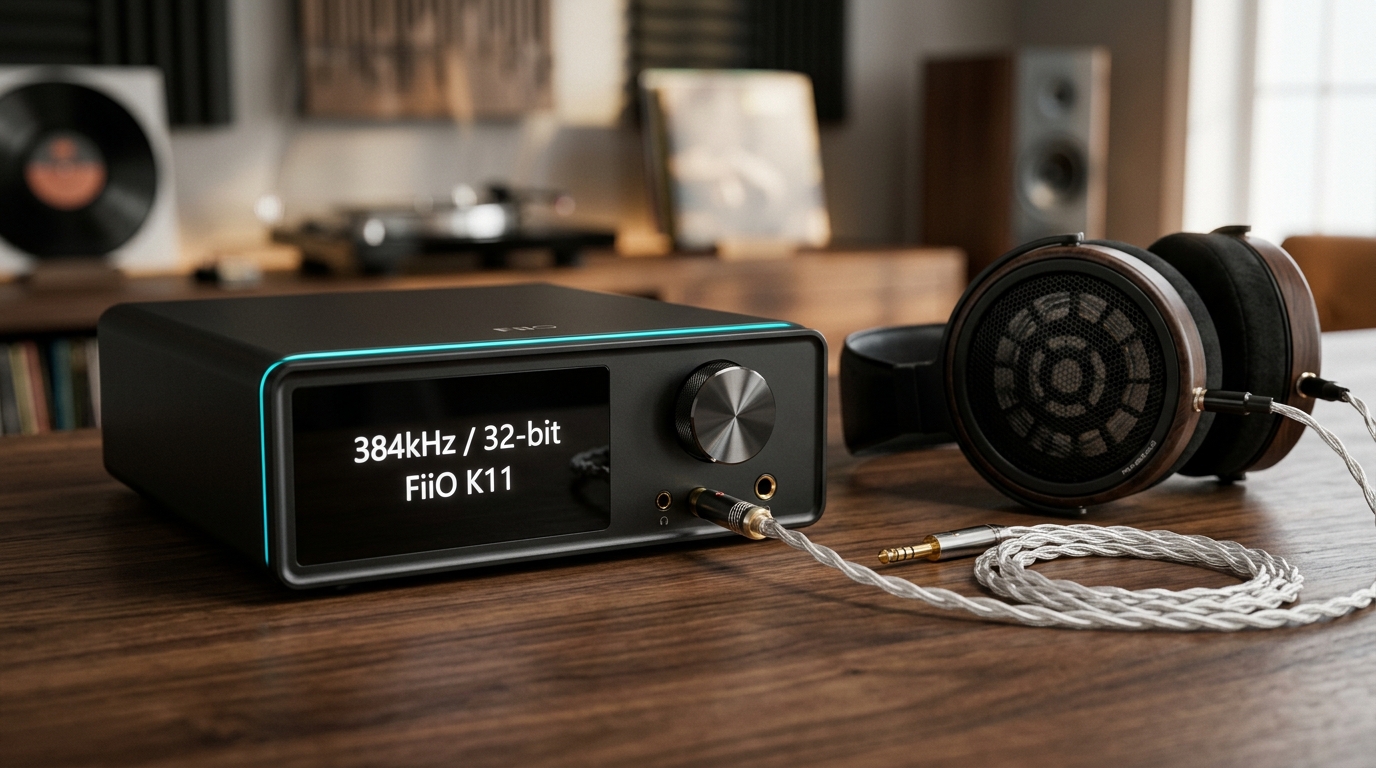

Stolní DAC a sluchátkový zesilovač FiiO K11
$129.00Ověřená cena
Stolní DAC a sluchátkový zesilovač FiiO K11
$129.00
Shrnutí a verdikt
Poskytuje výkon až 1 400mW na symetrickém výstupu 4.4mm, špičkový DAC čip CS43198, VA LCD displej a režim UAC 1.0 pro PS5 a Switch za necelých 3 200 Kč. Podrobný test buzení náročných studiových sluchátek.
Přednosti (Klady)
- +Bezkonkurenční symetrický výkon 1 400mW na kanál snadno rozehraje 300ohmová sluchátka jako Sennheiser HD600
- +Špičkový DAC Cirrus Logic CS43198 s odstupem signálu od šumu 123dB a nulovým šumem na pozadí u citlivých IEM
- +Hardwarový režim UAC 1.0 pro okamžité bezztrátové hraní na PS5 a Nintendo Switch bez instalace ovladačů
K zamyšlení (Zápory)
- -Nemá integrovaný Bluetooth přijímač; je určen výhradně pro kabelové digitální vstupy (USB, optika a koaxiál)
- -Hliníkové šasi se při dlouhém poslechu náročných 600ohmových sluchátek na vysoký zisk mírně zahřívá
Stolní DAC a sluchátkový zesilovač FiiO K11 - Key Hardware Specifications
| Feature | Technical Specification |
|---|---|
| Model Name | FiiO K11 Desktop Balanced DAC & Headphone Amplifier |
| DAC Architecture | Cirrus Logic CS43198 Flagship 32-bit Stereo DAC |
| Decoding Support | Up to 384kHz / 32-bit PCM and Native DSD256 |
| Balanced Max Power Output | 1,400mW + 1,400mW @ 32Ω / 250mW + 250mW @ 300Ω (4.4mm Pentaconn) |
| Single-Ended Power Output | 520mW + 520mW @ 32Ω / 60mW + 60mW @ 300Ω (6.35mm / 1/4") |
| Signal-to-Noise Ratio (SNR) | ≥ 123dB (A-weighted, Clean Audiophile Signal) |
| Total Harmonic Distortion | THD+N < 0.00035% (1kHz / 0dBFS @ 32Ω) |
| Noise Floor | < 2.8μV (Single-Ended) / < 4.9μV (Balanced) |
| Digital Audio Inputs | USB Type-C (UAC 1.0 & UAC 2.0), Optical (TOSLINK), Coaxial (RCA) |
| Analog Line Outputs | Stereo RCA Line Out (LO Mode: Fixed 2.0Vrms / PRE Mode: Adjustable Volume) |
| Gain Settings | 3 Physical Gain Levels (Low / Medium / High) |
| Display Panel & Lighting | Custom High-Contrast VA LCD Matrix + Hexagonal RGB FiiO Logo |
| Chassis & Build Material | CNC Aluminum-Magnesium Alloy Unibody Chassis |
| Dimensions & Weight | 147 × 133 × 32.3 mm / 407g |
| Power Supply | DC 12V / 2A Dedicated Low-Noise Switching Power Adapter |
---
1. Minimalist Slim Chassis, Custom VA LCD Screen & Multi-Function Dial
Following the widespread success of FiiO's massive K-series desktop gear, the FiiO K11 represents a modern industrial design pivot.
Standout Engineering Highlights:
- •Custom VA LCD Screen: Clearly displays active input, output mode, gain level, volume, and real-time audio sampling rate.
- •Illuminated RGB Logo Indicator: Color shifts according to audio sample rates (Cyan for ≤48kHz, Yellow for >48kHz, Green for DSD).
- •Precision Rotary Optical Encoder: 100-step digital volume control and single-button multi-menu navigation.
---
2. Audio Performance Benchmarks & Headphone Drive Tiers
- •Tier 1: Ultra-Sensitive IEMs (Low Gain - Zero Hiss):
- •Pitch-black background noise floor with zero electromagnetic hum.
- •Tier 2: 300-Ohm Studio Headphones & Planar Magnetics (High Gain - 1,400mW):
- •Drives Sennheiser HD600 / HD650 effortlessly with tight bass and wide orchestral staging.
- •Generous current headroom for planar magnetic headphones like Hifiman Sundara and Edition XS.
- •Tier 3: Limits & Thresholds:
- •Ultra-demanding vintage 600-ohm headphones require volume settings near 85-90/99.
- •Dedicated electrostatic headphones require specialized high-voltage bias amplifiers.
---
3. Critical Setup Tips & Practical Warnings
Switch to UAC 1.0 Mode for Sony PS5 & Nintendo Switch Gaming: Consoles do not support UAC 2.0 drivers. Toggle
UAC to 1.0 in the settings menu for instant plug-and-play 24-bit/96kHz Hi-Res gaming audio on PS5 and Switch.LO (Line Out) vs PRE (Pre-Amp) Output Modes for Studio Monitors: Select LO for external headphone amps; select PRE when connecting directly to active desktop studio monitors for integrated volume control.
---
4. 3-Way Head-to-Head: FiiO K11 vs Topping DX3 Pro+ vs iFi Zen DAC V2
| Feature | FiiO K11 | Topping DX3 Pro+ | iFi Zen DAC V2 |
|---|---|---|---|
| Retail Price (Choice) | ~$119 - $129 (Best Value) | ~$180 - $200 | ~$180 - $200 |
| DAC Chipset | Cirrus Logic CS43198 | ESS ES9038Q2M | Burr-Brown True Native |
| Max Balanced Power | 1,400mW + 1,400mW (4.4mm) | Single-Ended Only | 330mW + 330mW (4.4mm) |
| Headphone Outs | 4.4mm Balanced + 6.35mm | 3.5mm Only | 4.4mm Balanced + 6.35mm |
| Display Panel | Custom VA LCD Screen | Segment LED Display | LED Rings Only |
| Console UAC1.0 Mode | Yes (Driver-free PS5/Switch) | No | No |
| Verdict | The Best Sub-$150 Desktop King | Strong Wireless Feature | Classic Analog Warmth |
---
5. Local Domestic Market vs AliExpress Price & Coupon Stacking
In local retail markets, the FiiO K11 sells between $175 and $205. Purchasing directly via AliExpress Choice reduces the price to ~$119 - $129 with free expedited shipping.
3-Step Maximum Discount Stacking:
- Store Voucher: Collect seller coupon on product detail page.
- Monthly Promo Code: Enter site-wide coupon code during checkout.
- AliExpress Coins: Apply Coins for 5% to 8% additional savings.
---
Frequently Asked Questions (FAQ)
Q. Can the FiiO K11 drive Sennheiser HD600 / HD650 headphones?
Yes, exceptionally well. In high-gain mode through the 4.4mm balanced output, it delivers 250mW into 300 ohms with authoritative control.
Q. Does it work with Sony PS5 and Nintendo Switch?
Yes. Toggle the hardware UAC setting to 1.0 for instant driver-free 24-bit/96kHz lossless audio over USB.
Q. Is there background hiss with sensitive IEMs?
None at all. The K11 features an ultra-low noise floor below 2.8μV and 123dB SNR, providing a pitch-black background.
Ověřená Choice nabídka
Získejte nejlepší cenu pro Stolní DAC a sluchátkový zesilovač FiiO K11
Přímo z AliExpress Choice s rychlým doručením 5-7 dní a zárukou vrácení peněz.
