Recenze Creality Ender-3 V3 KE: Špičková 500mm/s 3D tiskárna s Klipperem a lineárním vedením osy X pod 7 000 Kč

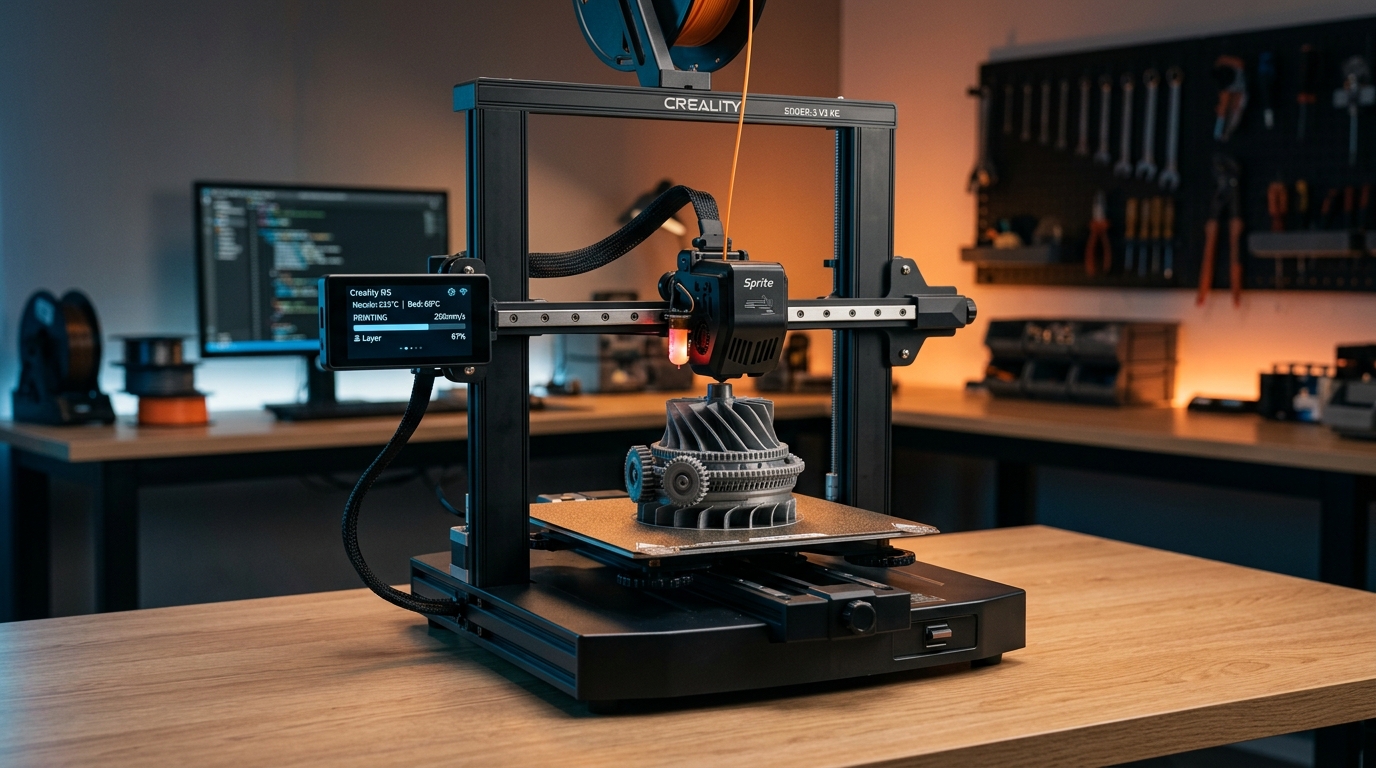

Creality Ender-3 V3 KE High-Speed 500mm/s 3D Printer
Creality Ender-3 V3 KE High-Speed 500mm/s 3D Printer
$279.00
Shrnutí a verdikt
Featuring a 500mm/s top speed, 8000mm/s² acceleration, X-axis precision linear rails, a 300°C ceramic hotend, and full Klipper-based Creality OS with auto Z-offset, the Ender-3 V3 KE obliterates traditional budget printer limitations. Detailed speed benchy tests, input shaping telemetry, and filament benchmarks.
Přednosti (Klady)
- +Max 500mm/s print speed and 8000mm/s² acceleration slash print times by up to 70% with flawless input shaping resonance compensation
- +Rigid X-axis ball-bearing steel linear rail delivers rock-solid gantry stability and eliminates layer banding artifacts
- +Full Creality OS (Klipper) with 4.3-inch color touchscreen, auto Z-offset sensor, and LAN/WiFi web interface access
K zamyšlení (Zápory)
- -Open-frame bedslinger design requires an enclosure tent to print warp-prone ABS and nylon filaments reliably
- -Dual 4010 part cooling fans produce noticeable high-pitch airflow noise during maximum 500mm/s print speed bursts
Creality Ender-3 V3 KE Key Specifications & Technical Hardware
| Feature | Technical Specification |
|---|---|
| Model Name | Creality Ender-3 V3 KE (Key to Excellence) |
| Printing Technology | FDM (Fused Deposition Modeling) Desktop 3D Printer |
| Build Volume | 220 × 220 × 240 mm (Standard Desktop Footprint) |
| Max Printing Speed | Up to 500 mm/s (Standard high-quality profile: 300 mm/s) |
| Max Acceleration | 8,000 mm/s² with active Input Shaping vibration compensation |
| Printhead & Extruder | Sprite Direct Drive Extruder (Dual-gear, 1:3.5 gear reduction ratio, 80N grip) |
| Hotend & Max Temperature | 60W Ceramic Heating Ring + Copper Alloy Nozzle (Max 300°C) |
| Motion System | Precision Steel Linear Rail on X-Axis + Dual synchronized Z-axis leadscrews |
| Bed Leveling & Calibration | Hands-Free Auto-Leveling (CR Touch) + Strain Gauge Auto Z-Offset Calibration |
| Build Surface | Flexible Magnetic Textured PEI Spring Steel Sheet (Fast model release) |
| Operating System | Creality OS (Klipper-based) with LAN web control (Fluidd/Mainsail compatible) |
| Display Panel | 4.3-inch Color Capacitive Touchscreen with model preview & real-time telemetry |
| Supported Filaments | Hyper PLA, PLA, PETG, TPU (95A), ABS, ASA (Requires enclosure), PLA-CF |
| Connectivity | Wi-Fi (2.4GHz), USB Drive, Creality Cloud App, LAN Web Interface |
| Chassis Dimensions & Weight | 433 × 366 × 490 mm / 7.8 kg (Solid injection molded base + rigid gantry) |
| Rated Power | 350W Low-Noise Switching Power Supply (100-240V universal) |
---
1. X-Axis Precision Linear Rail, Sprite Direct Drive & Creality OS Touchscreen
The Creality Ender-3 V3 KE marks a generational leap over old-school budget printers like the Ender-3 V2 and Ender-3 Neo. Rather than relying on wobbly POM rubber V-wheels on aluminum extrusions, the V3 KE adopts industrial-grade motion components:
Standout Engineering Highlights:
- •X-Axis Ball-Bearing Steel Linear Rail: Made of rigid bearing steel with an ultra-low 0.04 friction coefficient, the linear guide completely eliminates carriage wobble and micro-play, keeping the nozzle pinned strictly to the toolpath even under violent 8,000mm/s² direction shifts.
- •60W Ceramic Ring Hotend (300°C High-Flow): Surrounding the melt zone with a 360-degree ceramic cylinder melts up to 32mm³/s of plastic. The bi-metal heatbreak (copper + titanium) prevents heat creep, enabling effortless printing of technical polymers (PETG, TPU, ABS, ASA) up to 300°C without PTFE tube degradation.
- •Creality OS on 4.3-inch Color Screen: Powered by an embedded 1.2GHz dual-core SoC running a streamlined Klipper distribution, the UI boots in seconds, calculates resonance compensation, and allows full wireless slicing straight from Creality Print, Cura, or OrcaSlicer over LAN.
---
2. Real-World Performance Benchmarks & Printing Speed Tiers
Our testing put the Ender-3 V3 KE through rigorous speed, dimensional accuracy, and filament compatibility trials:
- •Tier 1: Speed Benchy & Rapid Prototyping (Hyper PLA @ 300~500mm/s):
- •15-Minute Standard 3DBenchy: Finished with clean hull layers, razor-sharp chimney edges, zero stringing, and virtually nonexistent ringing artifacts thanks to automated input shaping.
- •Large functional storage brackets and enclosures printed in 2.5 hours—a task that previously required 8 to 10 hours on classic Cartesian printers.
- •Tier 2: Engineering Filaments (PETG, Flexible TPU & High-Temp ABS):
- •TPU (95A Flexible): The tight tolerances of the Sprite direct drive extruder feed rubbery flexible TPU cleanly without jams or nozzle buckling at 60~80mm/s.
- •PETG (Waterproof / Mechanical Parts): Exceptional layer adhesion at 240°C on the textured PEI bed. Releases cleanly once cooled to room temperature with zero scraper scraping required.
- •Tier 3: Limits & Thresholds (Non-Recommended Zone):
- •High-Temperature ABS / Nylon / Polycarbonate: While the hotend reaches 300°C, the open-frame chassis allows ambient drafts to cause edge lifting and layer splitting on models wider than 120mm without an external thermal enclosure tent.
- •Abrasive Carbon Fiber Filaments: The stock brass/copper alloy nozzle will erode quickly with glow-in-the-dark or carbon-fiber composites; upgrade to a hardened steel nozzle before printing abrasive materials.
---
3. Critical Setup Tips & Practical Warnings
http://<printer-ip> into your desktop browser to access the native Fluidd/Mainsail web dashboard for real-time webcam streaming, G-code uploads, and terminal diagnostics without logging into cloud servers.---
4. 3-Way Head-to-Head: Creality Ender-3 V3 KE vs Bambu Lab A1 Mini vs Anycubic Kobra 2 Pro
| Feature | Creality Ender-3 V3 KE | Bambu Lab A1 Mini | Anycubic Kobra 2 Pro |
|---|---|---|---|
| AliExpress Choice Price | ~$269 - $279 (Best Balanced Value) | ~$299 - $329 | ~$259 - $279 |
| Build Volume | 220 × 220 × 240 mm (Full Size) | 180 × 180 × 180 mm (Compact) | 220 × 220 × 250 mm |
| Max Speed / Acceleration | 500 mm/s / 8,000 mm/s² | 500 mm/s / 10,000 mm/s² | 500 mm/s / 20,000 mm/s² |
| Firmware Ecosystem | Creality OS (Open Klipper Root Access) | Closed Bambu Proprietary OS | Proprietary Kobra OS |
| Hotend Max Temperature | 300°C (Ceramic 60W) | 300°C | 260°C (PTFE Limited) |
| Linear Guide System | Precision X-Axis Linear Rail | All-Axis Linear Rails | Metal Roller Rods |
| Verdict | The Best Versatile Desktop Workhorse | Ideal for Small Multi-Color Prints | High Speed on Budget |
---
5. Local Domestic Market vs AliExpress Price & Coupon Stacking
On domestic tech storefronts and specialized 3D printer importer sites (Coupang, Amazon, local hobby stores), the Creality Ender-3 V3 KE retails between $370 and $410 (₩480,000 ~ ₩530,000).
Purchasing directly via verified AliExpress Choice storefronts reduces the price to ~$269 - $279 (₩340,000 ~ ₩370,000) with tax-paid expedited shipping and authentic manufacturer parts warranty.
3-Step Maximum Discount Stacking:
- Store Voucher: Collect the seller coupon on the product detail page ($10 - $20 off).
- Monthly Promo Code: Enter the active site-wide discount code at checkout (saves an extra $20 to $30).
- AliExpress Coins: Apply accumulated Coins for a 5% to 8% direct price reduction.
---
Frequently Asked Questions (FAQ)
Q. How long does it actually take to print a standard 3DBenchy on the Ender-3 V3 KE?
With Creality Hyper PLA and the pre-configured high-speed slicing profile (0.2mm layer height, 300mm/s outer perimeter, 500mm/s infill), the 3DBenchy completes in approximately 15 minutes and 20 seconds with clean overhangs and crisp detailing.
Q. Can I print ABS and ASA filaments on the Ender-3 V3 KE?
Yes, the 300°C ceramic hotend and 100°C heated bed easily reach the necessary melting temperatures for ABS and ASA. However, because the printer has an open gantry frame, large prints can warp from cooling drafts. We strongly recommend placing the printer inside a flame-retardant enclosure tent when printing technical ABS parts.
Q. Does the Ender-3 V3 KE allow root Klipper access?
Yes! Unlike proprietary closed printers, Creality OS on the V3 KE provides an official toggle in the settings menu to enable root SSH access. Users can freely configure Fluidd, Mainsail, Moonraker plugins, custom macro scripts, and time-lapse USB webcams.
